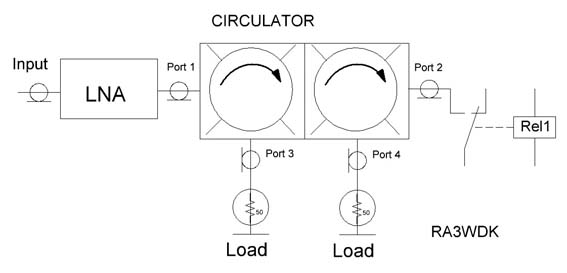

You can use circulator
for LNA 144 MHz protection scheme of the T/R switch includes the circulator
+ the 50 ohm high power termination load. Also you can use retuned circulator
for high speed, high power, low insertion loss T/R switch working at
144 MHz.
|

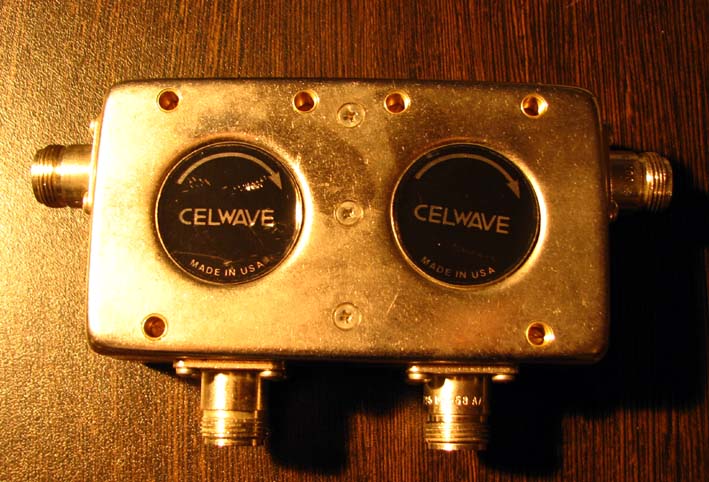

Circulator CD150-B
has excellent performance :
-Insertion loss < 0,9 db
-Isolation > 50 db
-VSWR < 1.1

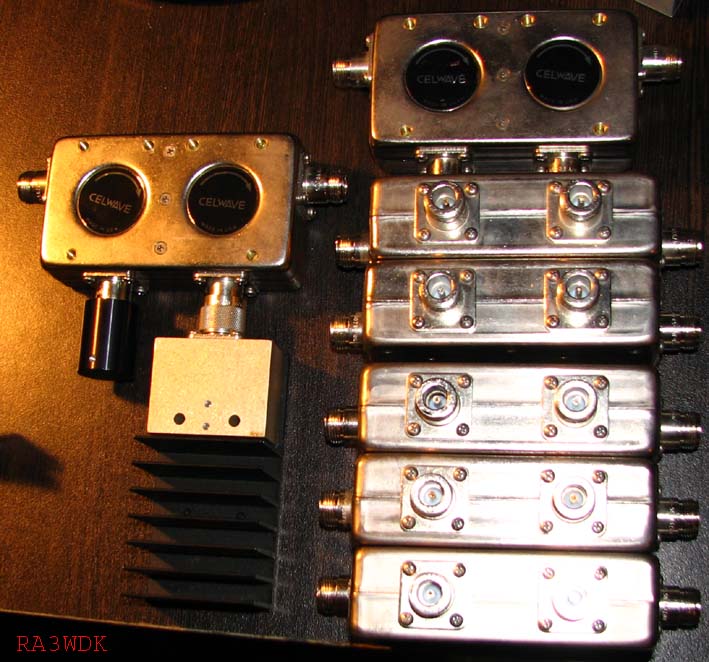

-Max. Power input 150 W * (with load
like on photo below)
-Max. Power reflected 100 W* (with
load like on photo below)
|
|
|
Retune and measurment VSWR
|
Repair after overload, CD150-B
inside
|
|
Insertion loss and VSWR
|
Insertion loss
and Isolation
|
Isolators
& Circulators datasheets
|
Model
|
Band , GHz
|
Isolation ,db
|
Insertion loss , db
|
|
|
FWP2-4 , FCP2-13
FCP2-13-1
|
3-3,7
|
more 20
|
0,5
|
|
|

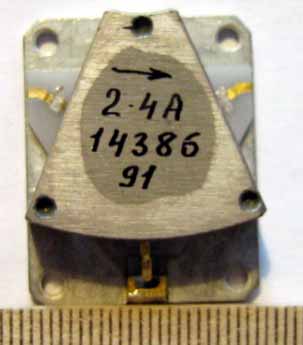

FWP2-4À , FCP2-13À
FCP2-13A1
|
3,7-4,6
|
more 20
|
0,5
|
|
|

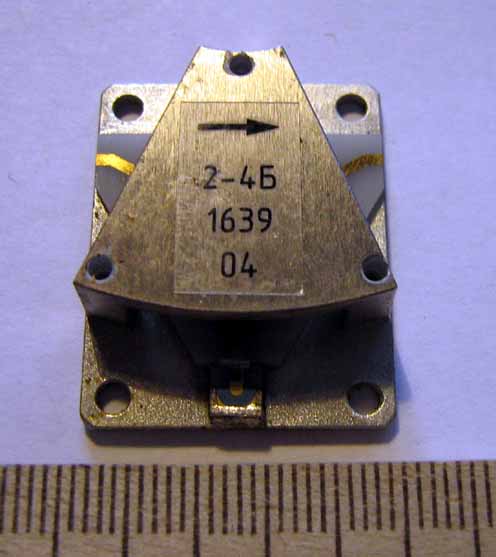

FWP2-4B , FCP2-13B
FCP2-13B1
|
|
more 20
|
0,5
|
|
|
FWP2-4W ,
FCP2-13W
FCP2-13W1
|
5,5-6,8
|
more 20
|
0,5
|
|
|

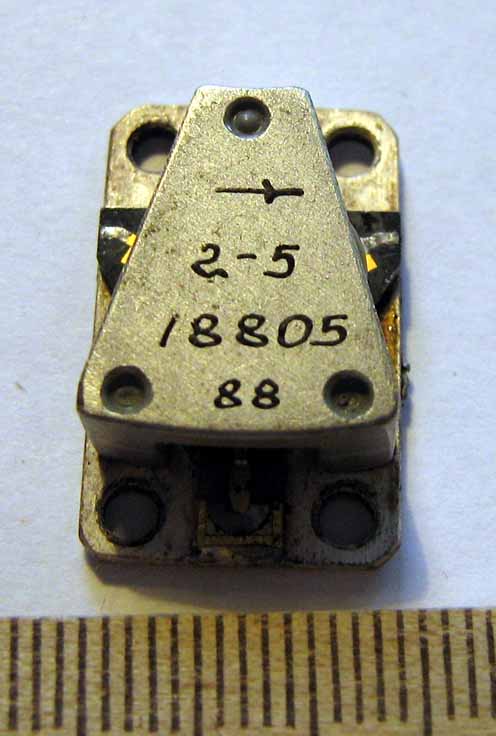

FWP2-5 , FCP2-14
FCP2-14-1
|
5,7-7,1
|
more 20
|
0,5
|
|
|

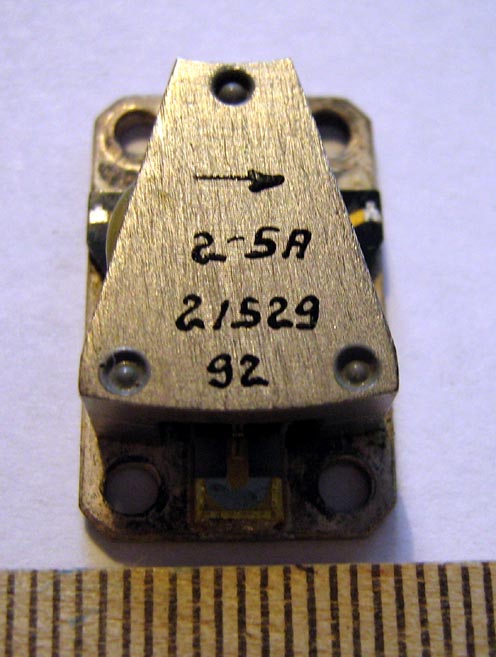

FWP2-5A , FCP2-14A
FCP2-14-1A
|
7-8,7
|
more 20
|
0,5
|
|
|

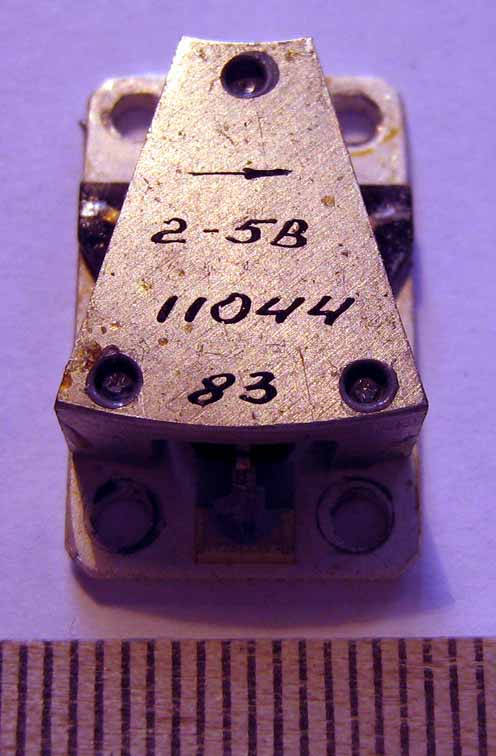

FWP2-5B , FCP2-14B
FCP2-14-1B
|
8,5-10,4
|
more 20
|
0,5
|
|
|
FWP2-5W , FCP2-14W
FCP2-14-1W
|
9,8-12
|
more 20
|
0,5
|
|
|

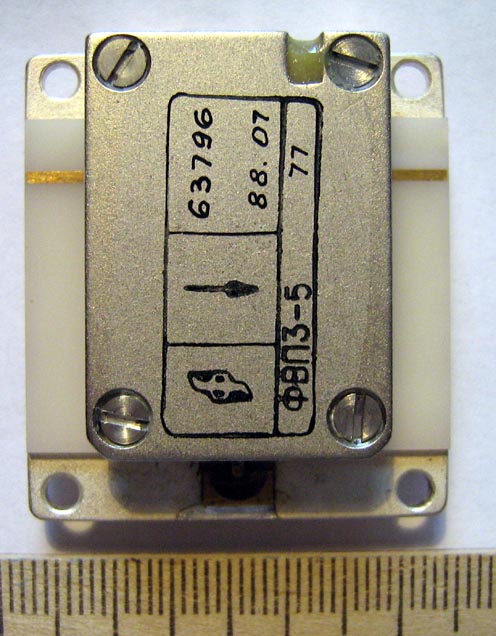

FWP3-5 (-1)
FCP3-12(-1)
|
1-1,5
|
more 20
|
0,5
|
|
|

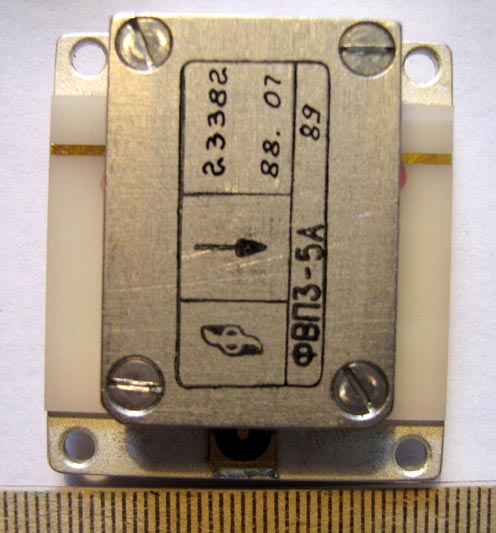

FWP3-5A (-1)
FCP3-12A(-1)
|
1,5-2
|
more 20
|
0,5
|
|
|

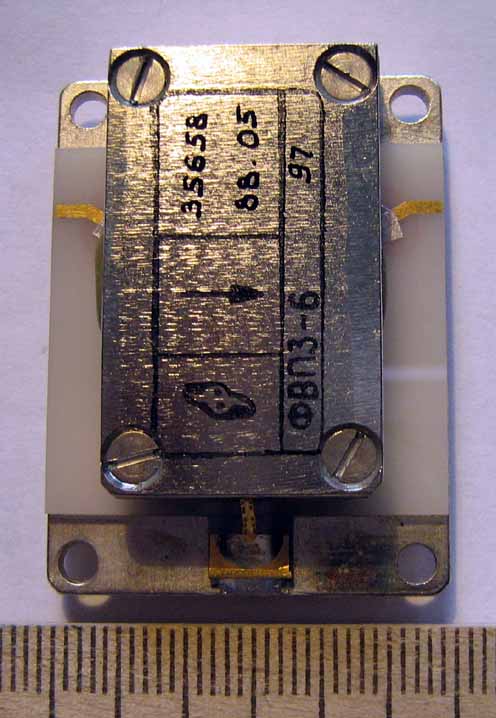

FWP3-6 (-1)
FCP3-13(-1)
|
2-2,5
|
more 20
|
0,5
|
|
|
FWP3-6A (-1)
FCP3-13A(-1)
|
2,5-3,2
|
more 20
|
0,5
|
|

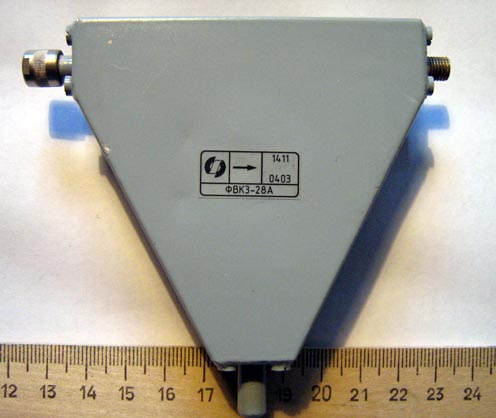

| FWK3-28A |
1,07-2,14
|
more 20
|
0,6
|
|
| FWK2-44A |
2-4
|
more 20
|
0,6
|
|

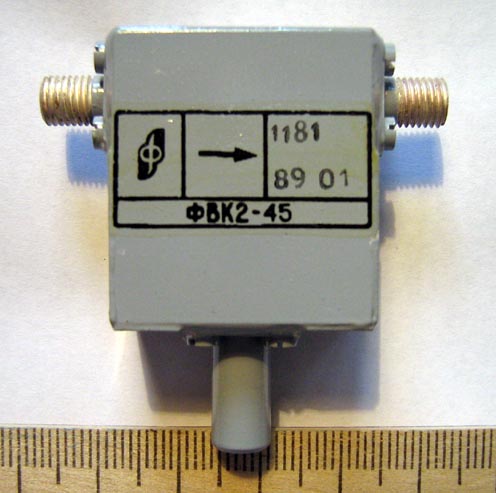

| FWK2-45 |
4-8
|
more 20
|
0,6
|
|

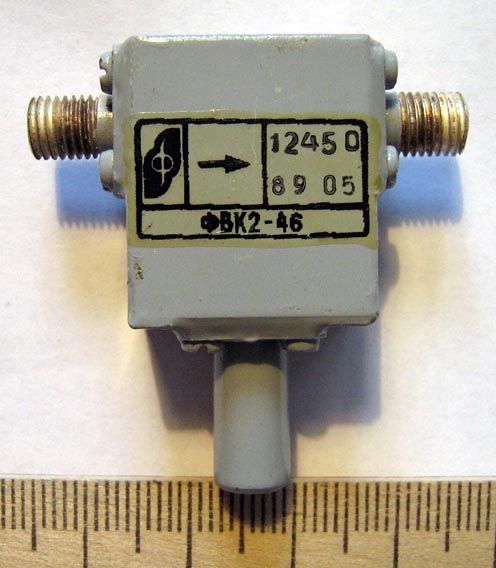

| FWK2-46 |
6-12
|
more 20
|
0,6
|
|
| FWK2-42A |
12-18
|
more 20
|
0,6
|
|

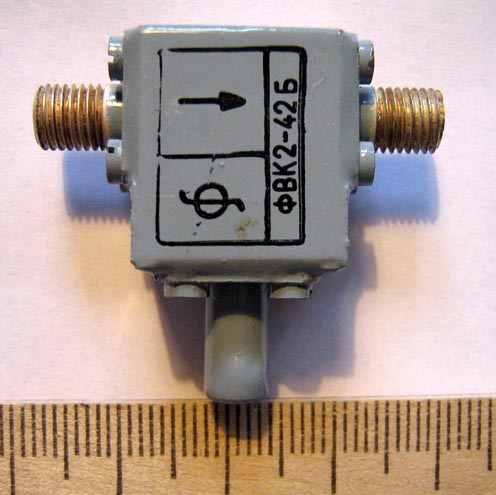

| FWK2-42B |
9-18
|
more 20
|
0,6
|
|

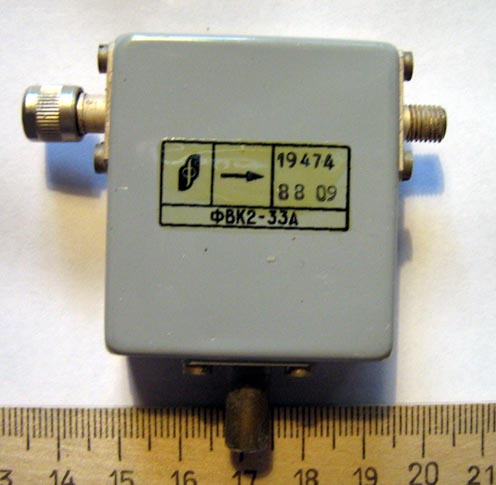

| FWK2-33A |
3,2-5,6
|
more 20
|
0,5
|
|
| FWK2-32A |
5,6-8,3
|
more 20
|
0,3
|
|

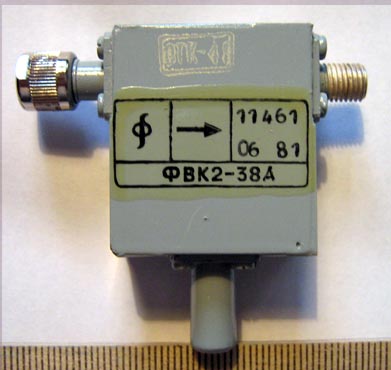

| FWK2-38(A) |
4,6-8,8
|
more 20
|
0,3
|
|

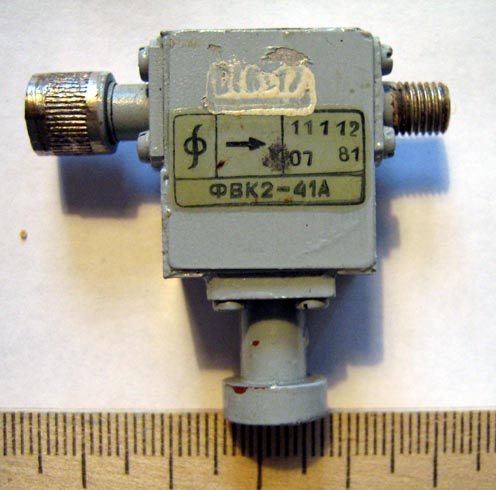

| FWK2-41A |
8,15-12,05
|
more 20
|
0,5
|
|
|
FWPN2-4
|
11,6-15
|
more 20
|
0,6
|
|
|
FWPN2-4A
|
13,5-17,5
|
more 20
|
0,6
|
|
|
FWPN2-4B
|
17,5-22,5
|
more 20
|
0,6
|
|
|
FWPN2-4W
|
22,5-26
|
more 20
|
0,6
|
|
|
FWP3-7 (-1)
FCP3-19 ( -1)
|
1,7-2,1
|
more 20
|
0,4
|
|
|
FWP3-10 (-1)
FCP2-20 ( -1)
|
3,4-3,9 |
more 23
|
0,4
|
|
|
FWP3-10A (-1)
FCP2-20A ( -1)
|
5,5-6,3 |
more 23
|
0,4
|
|
|
FWP3-11 (-1)
FCP2-21 ( -1)
|
7,7-8,7 |
more 23
|
0,4
|
|
|

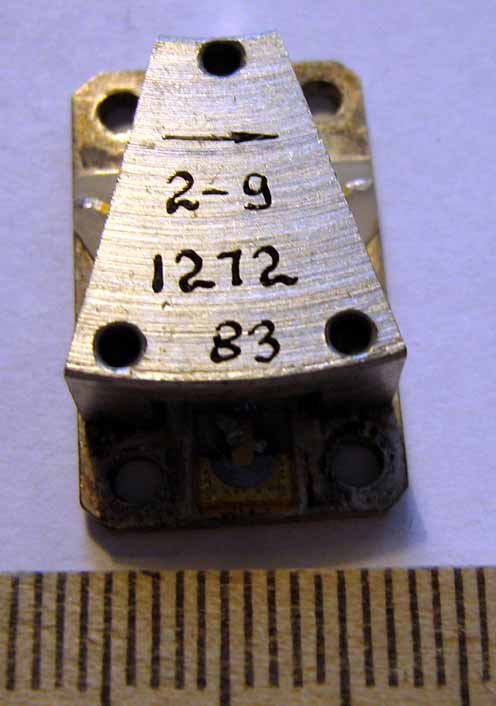

FWP2-9 (-1)
FCP2-19 ( -1)
|
10,7-11,1
|
more 23
|
0,5
|
|
|

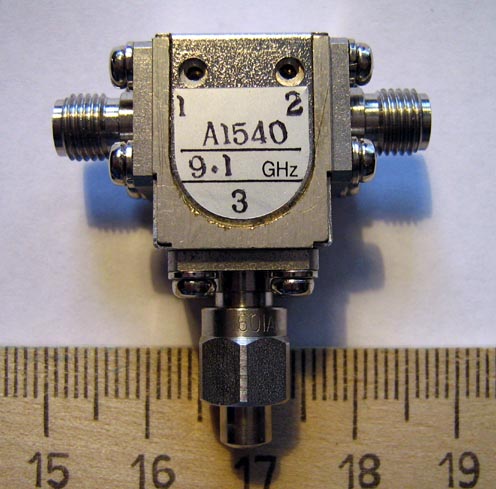

TMT ? 9903
|
? 8 -11 ?
|
more 30
|
0,3
|
|
|

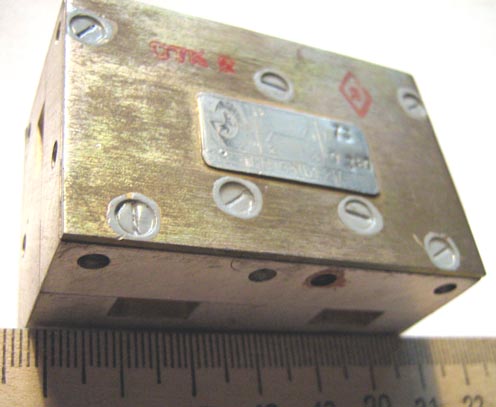

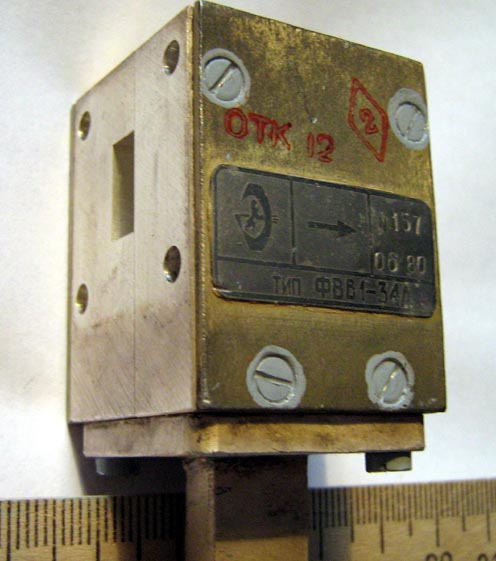

FCW1-21A
|
? 12 - 18 ?
|
?
|
?
|
|
|
FBB1-34A
|
? 12 - 18 ?
|
?
|
?
|
|
|

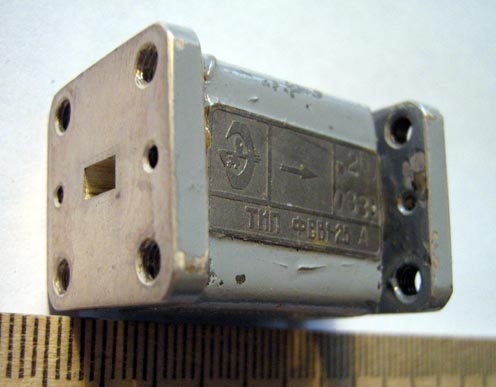

FWW1-25A
|
? 18-26 ? |
?
|
?
|
|
|
Macom
RS450910
|
0,43-0,47
|
?
|
0,2
|
 |
|
CELWAVE POWER DUAL ISOLATOR CIRCULATOR CD150-B
|
150-170 MHz
(can be retune)
|
over 50 db
|
0,6-0,8
|
|
|
|
|
|
|
|
|
